Bookmark and ShareDCM-85 series

Industrial 85 Watt DC/DC Multiple Output Power Converter Module

with +12 - 30V DC Power Input and +5V, +12V, 5Vsb Power Output


Key Features :

The DCM-85 is an industrial DC-to-DC power converter offering 85 watt of triple DC power output including 8A@5V, 4A@+12V and 4A@5Vsb and ATX-type PS-ON / Power-Good at 45 x 101.5 x 15 mm of dimension for the small form factor industrial x86-based computing applications with +5V/+12V power requirement.

  • 85 watt of power capacity with 4A at +12V power output, suitable for Intel mobile Pentium M platform.

  • ATX-type PS-ON, Power-Good, and 5Vsb interface.

  • Wide range 12 to 30V DC power input.

Liantec DCM-85 : Indsutrial 85W DC/DC Multiple Output Power Converter

Enlarge the Photo

DCM-85 Sample Enquiry





Specification

General Specification

85 watt DC to DC power converter with 5V, 12V, 5Vsb power output.

Power Input

11.5 ~ 30.0VDC full range power input (8A MAX)

Onboard Polymeric PTC (PPTC) fuse protection

External 3/4-pin MiniDIN DC power jack connector or internal 4-pin wafer connector.

Onboard power-in LED.

Power Output

+5V / 5Vsb with shared 8A MAX

► +12V with 4A MAX

Over / under voltage protection : all output

ESD protection : all output

Total power capacity : 85 watt

Internal 4-pin +5V / +12V, 4-pin +12V and 3-pin wafer (fan) power connectors.

Onboard power-out LED on every voltage.

Dimension

45 x 101.5 x 15 mm (W x L x H)



Mechanical Drawing

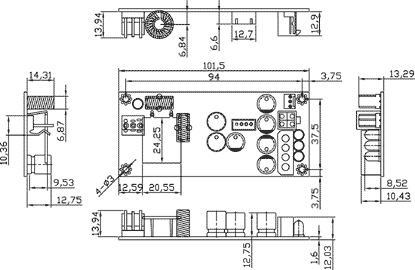

Liantec DCM-85 Mechanical Drawing



Ordering Code

DCM-85E

Industrial 85W DC/DC Multiple Output Power Converter Module

with External 4-pin DC Power Jack


DCM-85J

Industrial 85W DC/DC Multiple Output Power Converter Module

with Internal 3/4-pin Power Wafer Connector



Related Product

Liantec DCM-150 : Industrial 150W DC/DC ATX Power Converter

DCM-100

Industrial 100W DC/DC ATX Power Converter

3.3V / 5A

+5V and 5Vsb / 8A

+12V / 4A

-12V / 0.5A


Liantec DCM-150 : Industrial 150W DC/DC ATX Power Converter

DCM-150

Industrial 150W DC/DC ATX Power Converter

3.3V / 5A

+5V and 5Vsb / 8A

+12V / 8A

-12V / 0.5A


Liantec TBM-DCX100/150 : Tiny-Bus 100/150W DC/ATX Power Converter Module

TBM-DCX100

Tiny-Bus 100W DC/ATX Power Converter Module

3.3V / 5A

+5V and 5Vsb / 8A

+12V / 4A

-12V / 0.5A
