EMB-5950 (Preliminary)

5.25" Intel Atom 945GSE Multimedia EmBoard

VGA, LVDS, CVBS / S-Video / YPbPr TV-out

HD Audio, Dual Gbit Ethernet, SATA-II 3Gbit/s

Full-Range +9~30V DC Power Operating

and Tiny-Bus® Modular Extension Solution

Bookmark and Share

Tiny-Bus Modular Extension Solution

► 5.25" Drive-size EmBoard @ 203 x 146mm

Intel Atom 945GSE Multimedia Platform

► Intel Atom N270 CPU with 1.6GHz / 533 FSB

► Intel 945GSE GMCH GMA950 Graphics

    with 2x18-bit LVDS Transmitter

One So-DIMM supports 2GB DDR2 SDRAM

► LVDS, CVBS / S-Video / YPbPr TV-out

    HD Audio with RCA / Phone Jack, SATA-II

► Dual Intel Gbit Ethernet Ports

► Optional Intel SDVO DVI / LVDS Extension

► Tiny-Bus® Modular Extension Solution

► Single +9~30V DC Power Operating

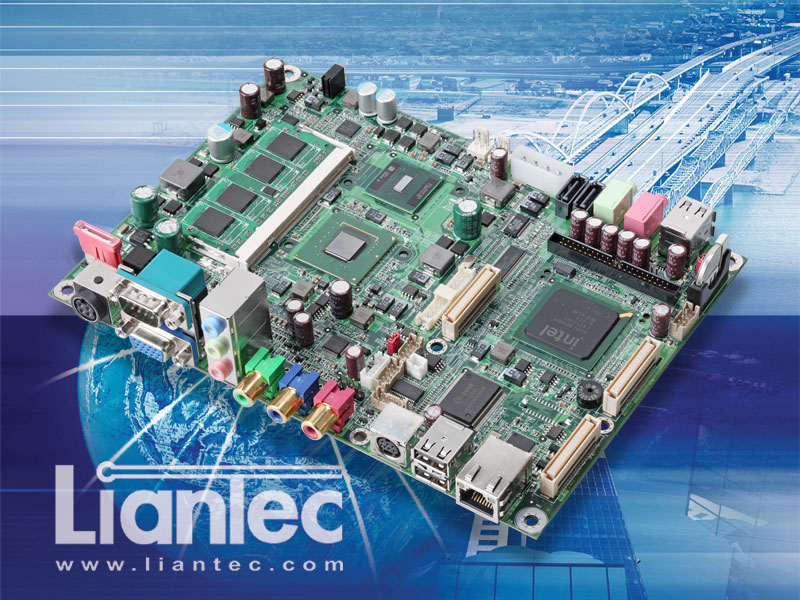

Liantec EMB-5950 Intel Atom 945GSE Multimedia Express EmBoard




Overview

The EMB-5950 is an industrial x86-based multimedia computing solution based on the 5.25-inch drive size form factor with 203 x 146 mm of dimension, Intel Atom 945GSE Express Diamondville Calistoga computing platform, and features the embedded Tiny-Bus® Modular Extension Solution. With the Intel embedded low power Atom processing platform, onboard LVDS, TV-out, HD audio, Dual Intel Gbit Ethernet, SATA-II interfaces, and the Intel SDVO, PCIe and PCI based Tiny-Bus® modular Extension solution, the EMB-5950 EmBoard meets the demand of the industrial embedded Small Form Factor (SFF) x86 PC-based multimedia computing applications with flexible modular Extension solution.

Key Features

  • Compact 5.25” drive-size EmBoard at 203 x 146 mm of dimension.

  • Intel Atom 945GSE Express computing platform with ultra low power Atom N270 CPU, GMCH built-in GMA950 VGA core and DDR2 SDRAM interfaces.

  • Intel Atom N270 1.6GHz / 533MHz FSB / 512KB L2 cache CPU for fanless operating.

  • 2x18-bit LVDS, Composite / S-Video / YPbPr TV-out, SATA-II (SATA-300) ports.

  • Onboard HD audio interface with rear RCA and front phone jack connectors.

  • Dual PCIe Intel Gbit Ethernet controllers with dual RJ45 connectors on rear I/O panel.

  • Tiny-Bus® Modular Extension Solution with single channel Intel SDVO video extension, two x1 PCI Express and dual PCI bus interfaces.

    ► Tiny-Bus® Intel SDVO-based Video Extension Module

    ► Tiny-Bus® PCI Express Extension Module

    ► Tiny-Bus® PCI Extension Module

    ► Tiny-Bus® DC/ATX Power Converter and peripheral Module

    ► Customized Tiny-Bus® Extension Module

  • Four external and four internal USB 2.0, 8-bit GPIO ports.

  • IDE-based bootable / driver-free CompactFlash socket.

  • Single +9 to 30VDC power operating with external power jack.

  • Compact, slim type and fanless barebone solutions are available.

Specification

Form Factor

5.25" drive-size form factor at 203 x 146 mm

CPU

Intel Atom N270 with 1.6GHz / 533MHz FSB, / 512KB L2 cache

2.5W ultra low power operating

Memory

One DDR2 So-DIMM socket

Supports 2 GBytes DDR2 SDRAM

Chipset

Intel embedded "Calistoga" 945GSE GMCH and ICH7M chipset

Watchdog Timer

Programmable system reset watchdog timer

with 1 to 255 sec. / min. of time out value

Power Management

ACPI 2.0 extensive power management

Real Time Clock

Intel ICH7M chipset built-in RTC with onboard lithium battery

Expansive Interface

Liantec Tiny-Bus® Modular Extension Solution with single channel Intel SDVO, two x1 PCI Express and dual bus master PCI interfaces.

PCI Enhanced IDE

One 44-pin UltraATA100/133 IDE port supports two ATAPI devices

Serial ATA (SATA) Port

Two SATA-II 3Gbit/s (300MBps) ports

with 3Gbit/s of raw bandwidth or 300MBytes/s of data transfer speed

Video Interface



Intel 945GSE GMCH built-in Intel GMA950 graphics core

with dual 18-bit LVDS TFT LCD transmitter and TV-out encoder

External DB15 female connector for CRT on rear I/O panel

External CVBS / S-Video / YPbPr TV-out on rear I/O panel

Onboard 40-pin Hirose DF13-40DP-1.25V LVDS connector

Video Extension Interface



Intel 945GSE GMCH built-in single channel Intel SDVO interface

Supports Tiny-Bus® Intel SDVO to DVI, LVDS, TV-out video extension modules.

TBM-16SDVOD1 : Tiny-Bus Intel SDVO / DVI and mPCI Module

TBM-16SDVOX1 : Tiny-Bus Intel SDVO / 2*24-bit LVDS Module

Audio Interface

Intel Azalia HD audio with ICH7M & ALC888S codec

External audio line-in/-out and mic-in phone jacks on rear I/O panel

External line-out / mic-in phone jacks on front panel

Ethernet Interface

Onboard Dual PCI Express Intel 82574L Gigabit Ethernet interface

10/100/1000BASE-TX auto-switching, IEEE802.3U compliant

External dual RJ45 connectors with LED on rear I/O panel

Hi-Speed USB 2.0

Intel ICH7M chipset built-in Hi-Speed USB 2.0 interface

with 4 external (2 front and 2 rear) and 4 internal USB ports

Multi-I/O Port

Dual RS232 serial ports with one external and one internal port

GPIO Port

8-bit GPIO with 4-bit digital input and 4-bit digital output

Onboard 2x5 GPIO pin header

External I/O Port

Rear I/O Panel

Power jack, COM / VGA, line-in/-out and mic-in audio phone jack

Y/Pb/Pr HDTV component RCA, CVBS / S-Video TV-out MiniDIN

dual USB, RJ45 Gbit Ethernet with LED

Front Panel

Dual USB ports, Line-out / Mic-in phone jack, power / access LED

Solid State Flash Disk

DiskOnModule Flash Disk

IDE-based, bootable, driver free DiskOnModule flash disk

Supports PIO mode 4 / Multi-Word mode 2

Flash memory capacity up to 8 GBytes (and beyond)

Onboard SATA ports support SATA-based DOM flash disk

7-pin SATA DiskOnModule at SATA / SATA-II 3Gbit/s

Tiny-Bus® Modular Extension Solution

Tiny-Bus Modular Expansion Solution

EMB-5930 with Tiny-Bus® Modular Extension Solution, supports dual channel Intel SDVO, four x1 / one x4 PCI Express and dual bus master PCI interfaces.

Tiny-Bus® Graphics / Video Extension Module

TBM-16SDVOD1 : SDVO Intel SDVO / DVI and Mini-PCI Module

TBM-16SDVOX1 : SDVO Intel SDVO / 2*18-/24-bit LVDS Module

Tiny-Bus® PCI Express Extension Module

TBM-1400 : PCIe Dual MiniCard / Wi-Fi Module

TBM-1410 : PCIe ExpressCard and Mini-PCI Module

TBM-1420 : PCIe 4-Channel / 120 fps Video Capture Module

TBM-1430 : PCIe 4-Port Gbit Ethernet Switch Module

TBM-1442 : PCIe Dual Bypass Intel Gbit Ethernet and mPCI Module

TBM-1450 : PCIe IEEE1394b 800Mbps Firewire and mPCI Module

TBM-1460 : PCIe eSATA/SATA 3Gbit/s Multiplier and mPCI Module

Tiny-Bus® PCI Extension Module

TBM-1200 : PCI Dual Mini-PCI Module

TBM-1210 : PCI Dual PCMCIA and Mini-PCI Module

TBM-1220 : PCI Video Capture and Mini-PCI Module

TBM-1222 : PCI 4-CH / 120 fps Video Capture and Mini-PCI Module

TBM-1230 : PCI 4-Port Fast Ethernet Switch and Mini-PCI Module

TBM-1240 : PCI 4-Port Gbit / Fast Ethernet and Mini-PCI Module

TBM-1241 : PCI IEEE802.3af +48V PoE PSE Fast Ethernet Module

TBM-1242 : PCI Dual Bypass Intel Fast Ethernet and mPCI Module

TBM-1250 : PCI Multiple RS-232 COM and Mini-PCI Module

TBM-1251 : PCI Multiple RS-232 and Isolated RS-422/485 Module

TBM-1260 : PCI IEEE1394 Firewire and Mini-PCI Module

TBM-1261 : PCI External / Internal USB 2.0 and Mini-PCI Module

TBM-12PCM : PCI PC/104-Plus and Mini-PCI Module

Tiny-Bus® Compliant Accessory / Development Tool Module

TBM-DB25 : Tiny-Bus 2.5" Drive Bay Module

TBM-HDK-PCI : Tiny-Bus PCI Hardware Development Module

TBM-HDK-PCIE : Tiny-Bus PCIe Hardware Development Module

Customized Tiny-Bus® Extension Module

Other customized Tiny-Bus® extension modules based on Intel SDVO, x1 PCIe and PCI bus interfaces with EMB-5950 EmBoard for ODM / OEM projects.

Environment

Power Requirement: Single +9~30V DC power with DC jack

Board Dimension: 203 x 146 mm (L x W)

Operation Temperature : 0 ~ 60oC (32 ~ 140oF)

Storage Temperature: -40 ~ 85oC (-40 ~ 185oF)

Operating Humidity: 10 ~ 90% relative humidity, non-condensing.

Ordering Guide

Model Name

Description

EMB-5950N270

5.25" Intel Atom N270 GSE945 Multimedia EmBoard

with VGA, LVDS, CVBS / S-Video / YPbPr TV-out, HD Audio,

Dual Intel Gbit Ethernet, SATA-II 3Gbit/s, CompactFlash Socket

EMB-5950-OEM

Customized configuration based on existing EMB-5950 EmBoard with optional onboard CPU, DRAM, functions, Tiny-Bus modules and other integration service.
