TBM-DCX110 (Preliminary)

Tiny-Bus 100W DC/ATX Power Module

Based on Tiny-Bus Form Factor

with 12~30VDC Input / ATX Power Output

Tiny-Bus Modular Extension Solution

Key Features :

The TBM-DCX110 is a DC-to-DC ATX power converter module based on Tiny-Bus® form factor, offering 100 watt of ATX power output with external power input, LED and button for the small form factor (SFF) x86-based applications with Tiny-Bus® Extension solution.

  • 100 watt of power capacity with ATX power output under fanless operating.

  • 4A MAX at +12V of power output for Intel Core2 Duo/Quad mobile, Pentium M, Celeron M, AMD Geode NX and VIA C7-Eden platform.

  • Mechanical compatible with Tiny-Bus® Extension Solution.

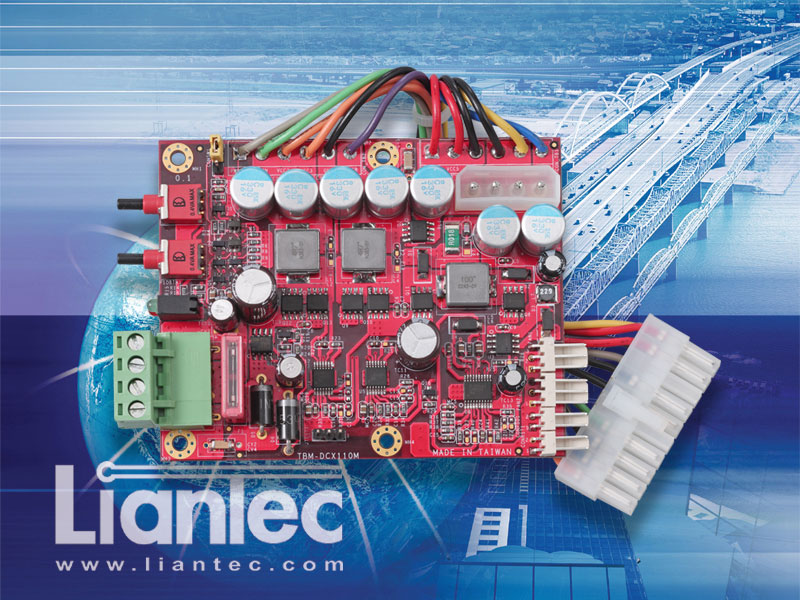

Liantec TBM-DCX110 : Tiny-Bus 100W 12~30V DC/ATX Power Converter Module

Liantec TBM-DCX110 Tiny-Bus DC/ATX Power Converter Module


Photo Gallery

TBM-DCX110 Sample Enquiry




||  Specification  |  Application  |  Ordering Guide  |  Datasheet (PDF)  ||




Specification

General Specification

Industrial 100 watt DC to DC ATX power converter based on Tiny-Bus® Modular Extension Solution with 3.3V, 5V, 12V, -12V, and 5Vsb ATX power output, supports 100 watts power capacity under 40oC fanless operating.

Power Input

► Full range 12 to 30V DC power input with 10A MAX

► Onboard Littelfuse ATO related 32VDC fuse protection

External 4-pin removable terminal block with power-in / system-on LED

External power-on and reset button, internal connector for motherboard.

Power Output

+3.3V with 5A MAX

+5V / 5Vsb with shared 8A MAX

► +12V with 4A MAX

-12V with 0.35A MAX

Over / under voltage protection : all output

ESD protection : 3.3V, 5V, +12V, 5Vsb

Total power capacity : 100 watt under 40oC fanless operating

Onboard power cable with 20-pin ATX power connector

Internal 4-pin +5V / +12V power connector

Internal PS-ON, reset connectors for motherboard

Dimension

74.5 x 91.5 x 15 mm (W x L x H), Tiny-Bus® form factor



Application Sample

TBM-DCX110 Tiny-Bus 100W 12~30V DC/ATX Power Module on Mini-ITX EmBoard TBM-DCX110T Tiny-Bus® DC/ATX power converter module on ITX-6965 Mini-ITX EmBoard, supports full range 12~30VDC single power input operating with 100 watt of power capacity.



Compatible EmBoard

ITX-6M45

Mini-ITX Intel GM45 Penryn Core2 Duo / Quad Mobile Express EmBoard

with GMA X4500 VGA, LVDS, TV-out, Audio, Gbit Ethernet, SATA-II 3Gbit/s

and Tiny-Bus Modular Extension Solution


ITX-6965

Mini-ITX Intel GME965 Core 2 Duo Mobile Express EmBoard

with GMA X3100 VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II 300

and Tiny-Bus Modular Extension Solution


ITX-6945

Mini-ITX Intel 945GME Core Mobile Express EmBoard

with GMA950 VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II 300

and Tiny-Bus Modular Extension Solution


ITX-6910

Mini-ITX Intel Mobile Pentium M / Celeron M Express EmBoard

with GMA900 VGA, LVDS, HD Audio, Gbit Ethernet, SATA

x16 PCI Express Graphics Slot and Tiny-Bus Modular Extension Solution


ITX-6900

Mini-ITX Intel Mobile Pentium M / Celeron M Express EmBoard

with GMA900 VGA, LVDS, HD Audio, Gbit Ethernet, SATA

and Tiny-Bus Modular Extension Solution


ITX-6810

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Gbit Ethernet

and Tiny-Bus Modular Extension Solution


ITX-6800

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Dual Gbit Ethernet, IEEE1394 Firewire

and Tiny-Bus Modular Extension Solution


ITX-6700

Mini-ITX AMD Embedded Geode NX EmBoard

with VGA, Audio, Gbit Ethernet and Tiny-Bus Modular Extension Solution



Ordering Code

TBM-DCX110T

Tiny-Bus 100W 12~30V DC/ATX Power Converter Module

with External 4-pin Removable Terminal Block


TBM-DCX110T1

Tiny-Bus 100W 12~30V DC/ATX Power Converter Module

with Internal 4-pin Terminal Block
