Key Features

Liantec TBM-HDK-PCI is a Tiny-Bus® PCI-based hardware development kit with 3 PCI slots and 2 mini-PCI sockets for the system integrators to build and develop their owned Tiny-Bus® based hardware solution.

• 3 PCI slots and 2 mini-PCI type- IIIA/B sockets.

• Additional power input terminal block for power-loading add-on cards.

• Liantec embedded Tiny-Bus® Modular Extension Solution.

Liantec TBM-HDK-PCI Tiny-Bus PCI Hardware Development Module

Photo Gallery

TBM-HDK-PCI Sample Enquiry

Specification

General Specification

• Tiny-Bus® Modular Extension Solution with dual bus master PCI interfaces.

• Onboard 2-to-5 32-bit / 33MHz PCI arbiter.

• Supports 3 PCI slots and 2 Mini-PCI sockets.

External / Internal Connector

• Three 32-bit / 33 MHz PCI slots.

• Two mini-PCI Type-III sockets.

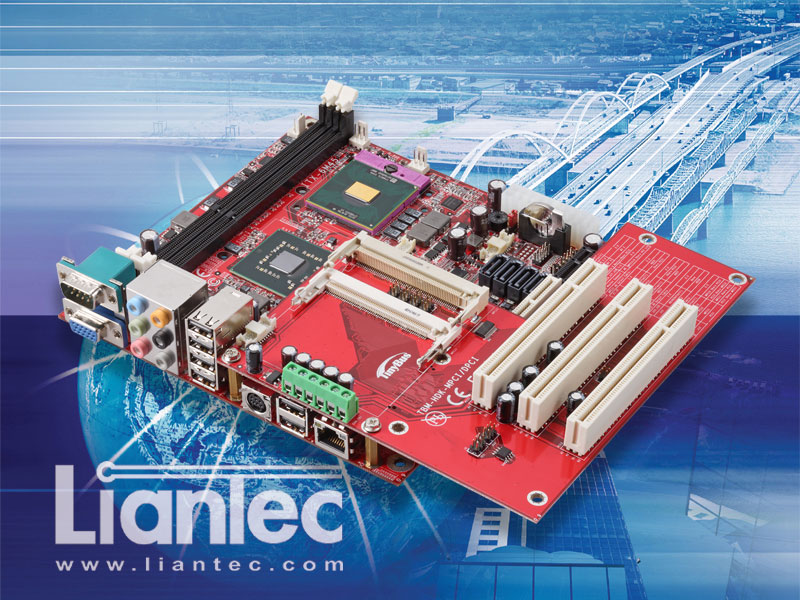

Application Sample

Compatible EmBoard

Ordering Code

ITX-6M45

Mini-ITX Intel GM45 Penryn Core2 Duo / Quad Mobile Express EmBoard

with GMA X4500 VGA, LVDS, TV-out, Audio, Gbit Ethernet, SATA-II 3Gbit/s

and Tiny-Bus Modular Extension Solution

ITX-6965

Mini-ITX Intel GME965 Merom Core2 Duo Mobile Express EmBoard

with GMA X3100 VGA, LVDS, TV-out, Audio, Gbit Ethernet, SATA-II 3Gbit/s

and Tiny-Bus Modular Extension Solution

ITX-6945

Mini-ITX Intel 945GME Core2 / Core Mobile Express EmBoard

with GMA950 VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II 3Gbit/s

and Tiny-Bus Modular Extension Solution

ITX-6910

Mini-ITX Intel 915GME Pentium M / Celeron M Express EmBoard

with GMA900 VGA, LVDS, HD Audio, Gbit Ethernet, SATA

x16 PCI Express Graphics Slot and Tiny-Bus Modular Extension Solution

ITX-6900

Mini-ITX Intel 915GME Pentium M / Celeron M Express EmBoard

with GMA900 VGA, LVDS, HD Audio, Gbit Ethernet, SATA

and Tiny-Bus Modular Extension Solution

ITX-6815

Mini-ITX Intel Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Gbit Ethernet, Single DC Power Operating

and Tiny-Bus Modular Extension Solution

ITX-6810

Mini-ITX Intel Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Gbit Ethernet

and Tiny-Bus Modular Extension Solution

ITX-6800

Mini-ITX Intel Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Dual Gbit Ethernet, IEEE1394 Firewire

and Tiny-Bus Modular Extension Solution

ITX-6700

Mini-ITX AMD Embedded Geode NX EmBoard

with VGA, Audio, Gbit Ethernet, SATA

and Tiny-Bus Modular Extension Solution

EMB-5950

5.25" Drive-size Intel Atom 945GSE Multimedia EmBoard

with Intel Atom N270 CPU, VGA, LVDS, TV-out, HD Audio, Gbit Ethernet

and Tiny-Bus Modular Extension Solution

EMB-5940

5.25" Drive-size Intel Core2 Duo Mobile Express Networking EmBoard

with VGA, Four Intel Gbit Ethernet, SATA-II CompactFlash / Mini-PCI Socket

and Tiny-Bus Modular Extension Solution

EMB-5930

5.25" Drive-size Intel GME965 Core2 Duo Express Multimedia EmBoard

with VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II 3Gbit/s

and Tiny-Bus Modular Extension Solution

EMB-5740

5.25" Drive-size VIA C7-Eden Multi-Ethernet EmBoard

with VGA, Four Gbit Ethernet, CompactFlash / Mini-PCI Socket

and Tiny-Bus Modular Extension Solution

EMB-5730

5.25" Drive-size VIA C7-Eden CX700M Multimedia EmBoard

with VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA, Mini-PCI Socket

and Tiny-Bus Modular Extension Solution

EMB-3700

3.5" Drive-size VIA C7-Eden Multimedia EmBoard

with VGA, MPEG-2/4/WMV9 Accelerator, Ethernet, CompactFlash Socket

and Tiny-Bus Modular Extension Solution
